- IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 workweeks. The finished tank pickup window is also 2 workweeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

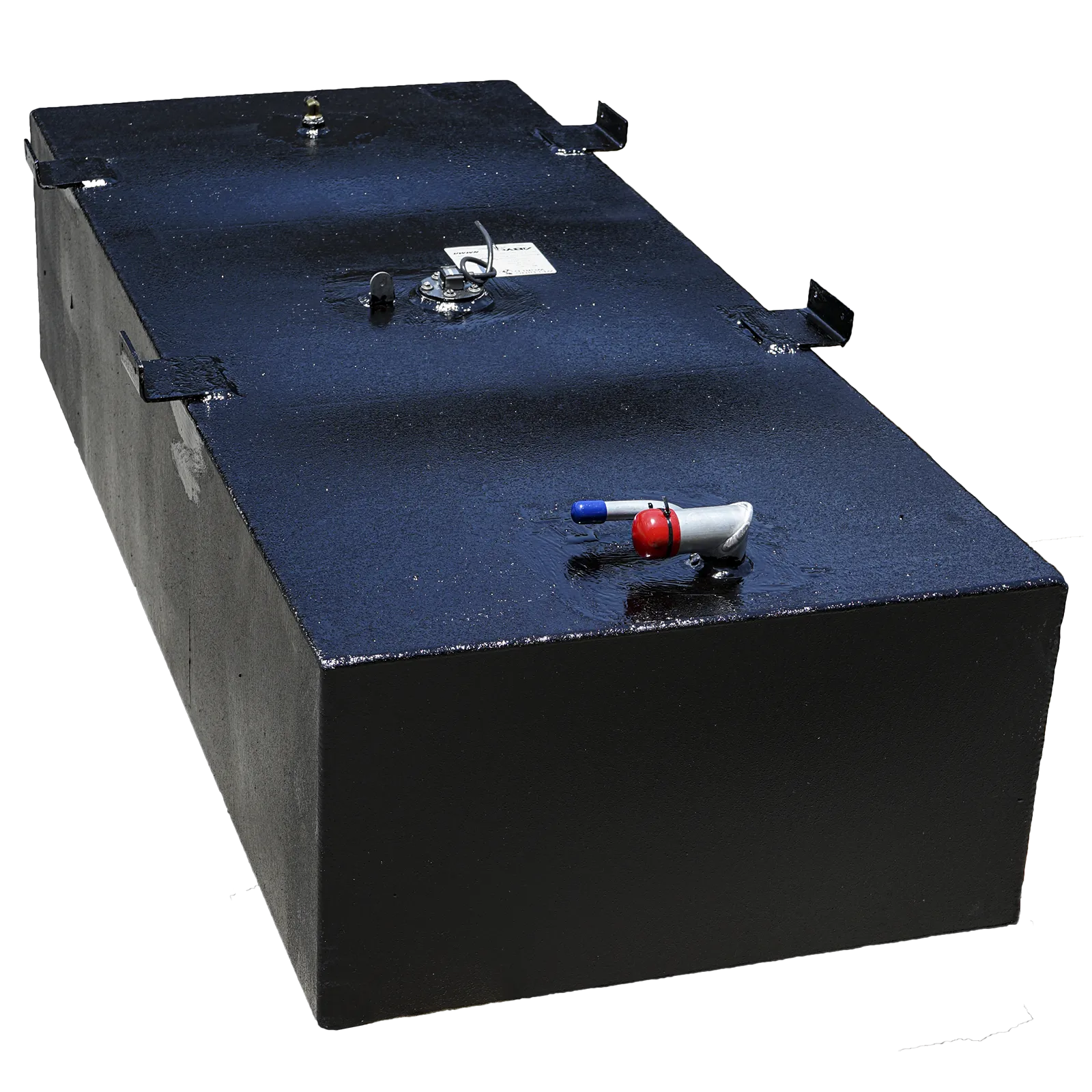

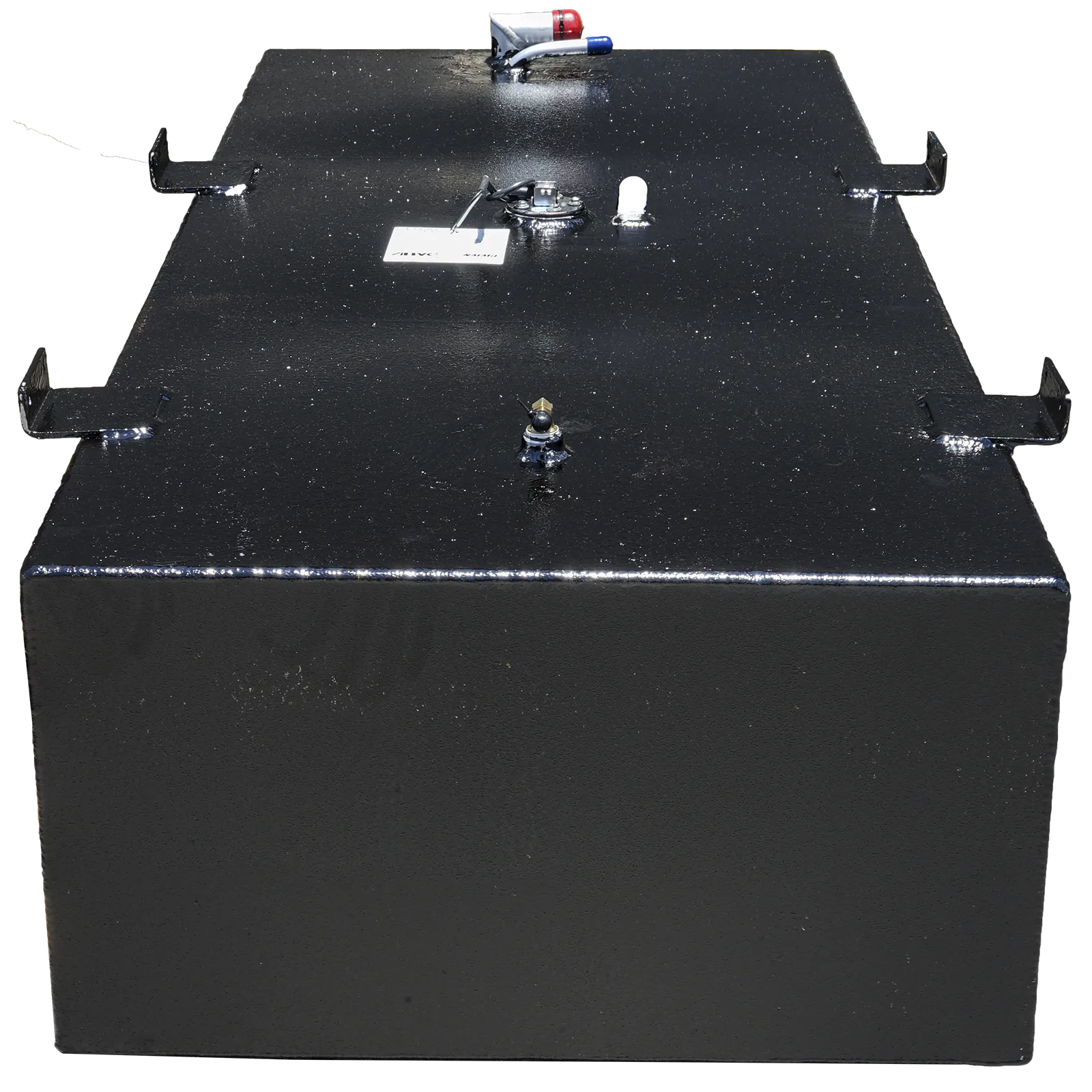

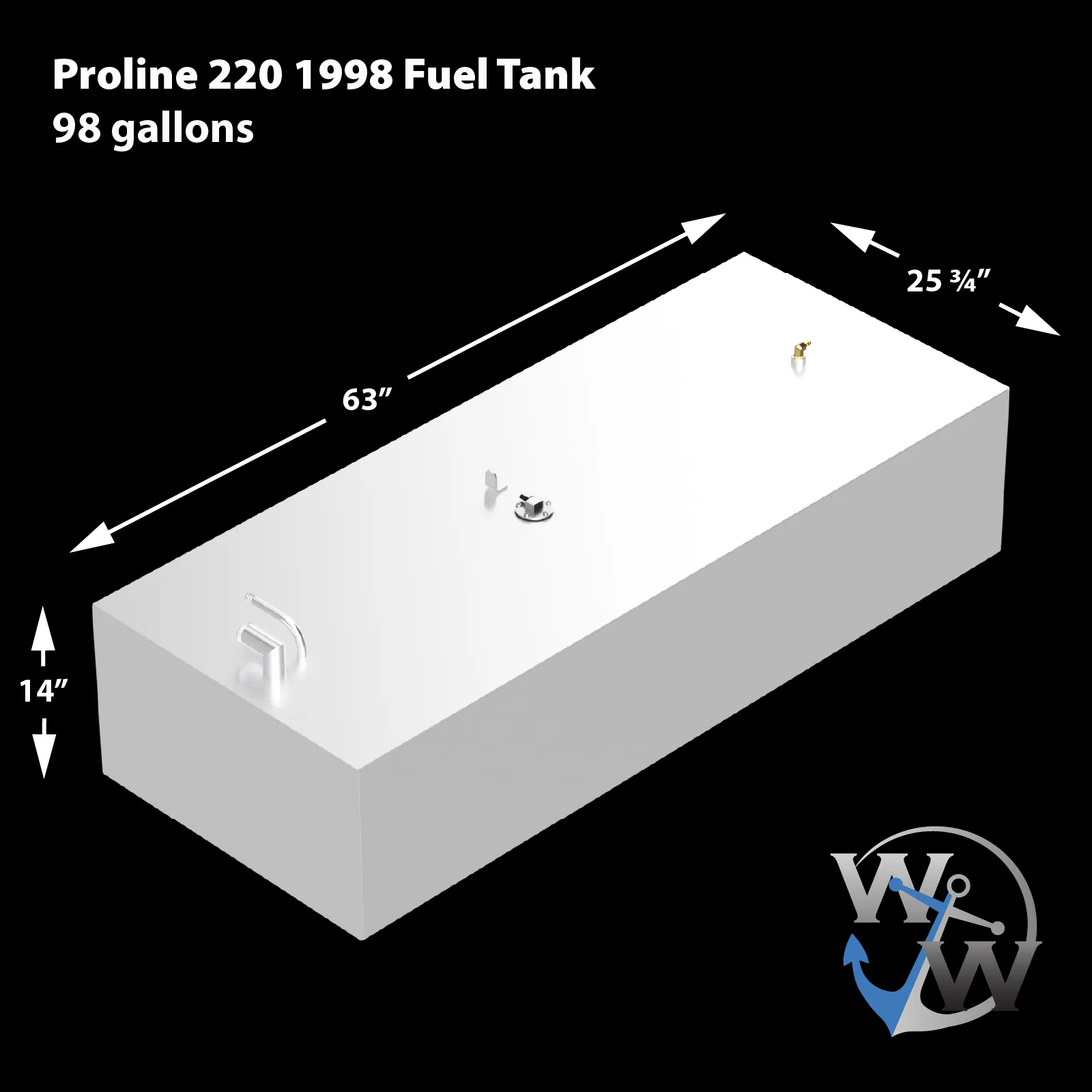

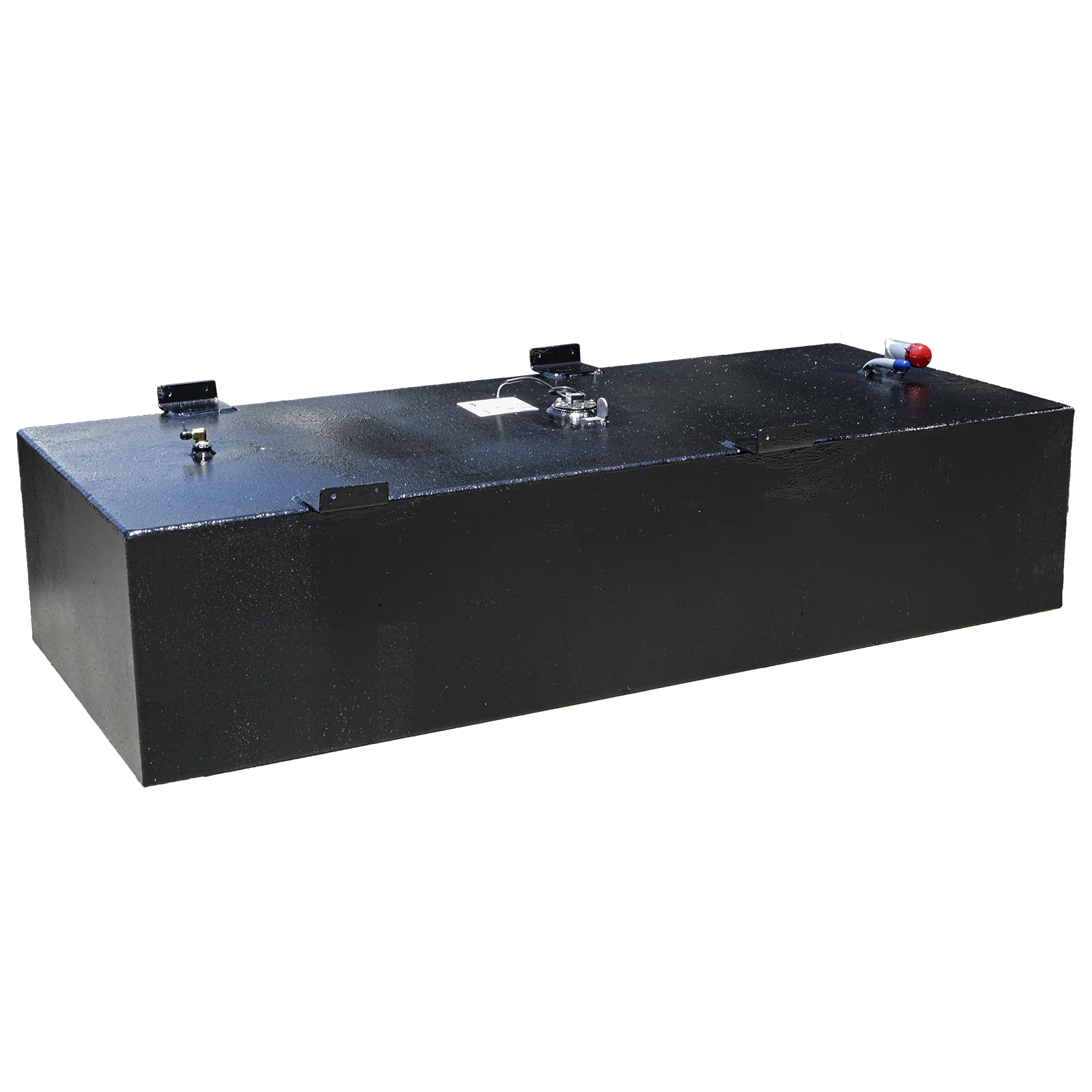

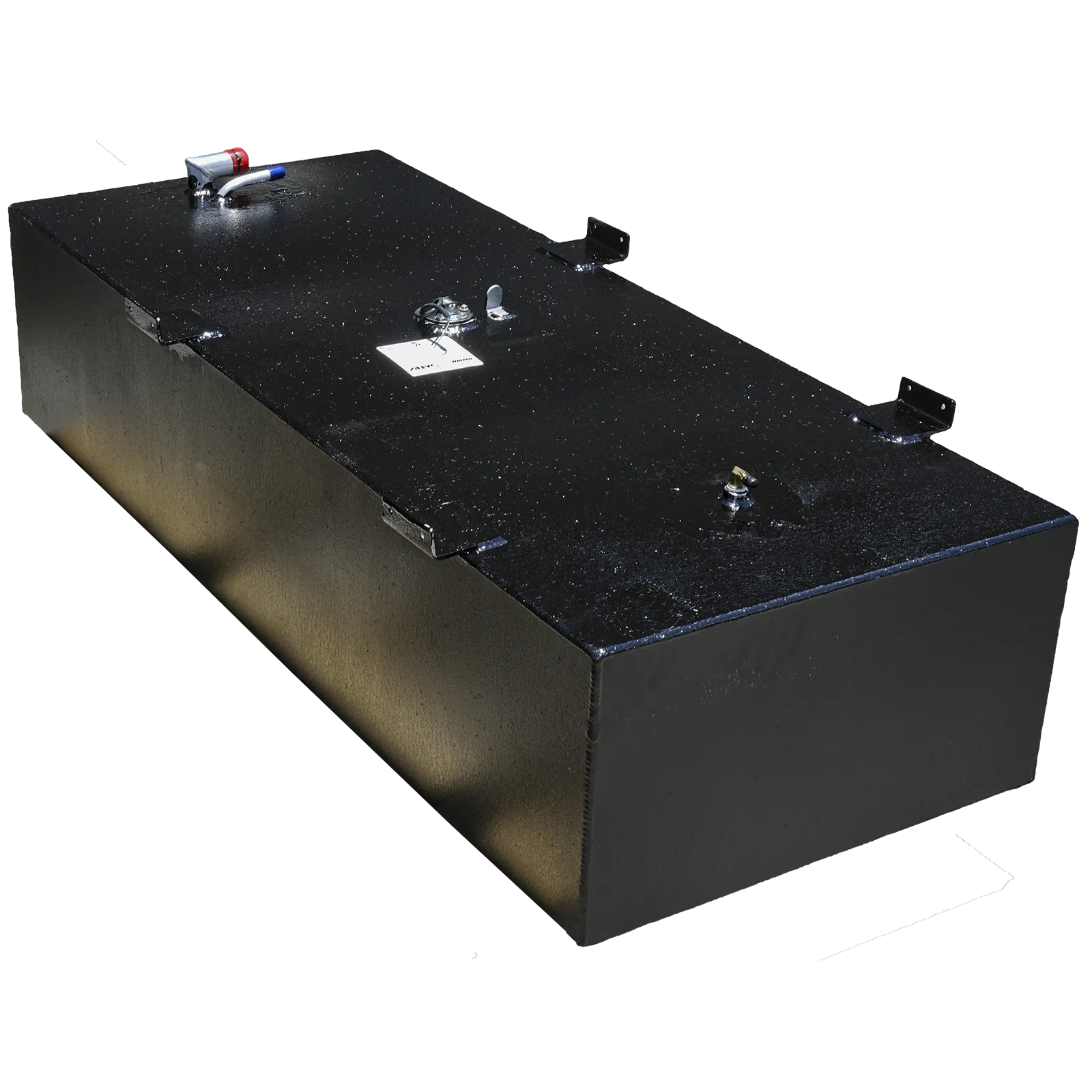

- 100% compatible with all Proline 220 center console boats from the 1998 year model, with a 98-gallon capacity fuel tank, and possibly with other close year models. Overall dimensions: width: 28.85 in. Length: 63 in. Height: 14 in.
- .125 thickness Alcoa® 5052 H32 Series aluminum construction.
- Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.
- Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

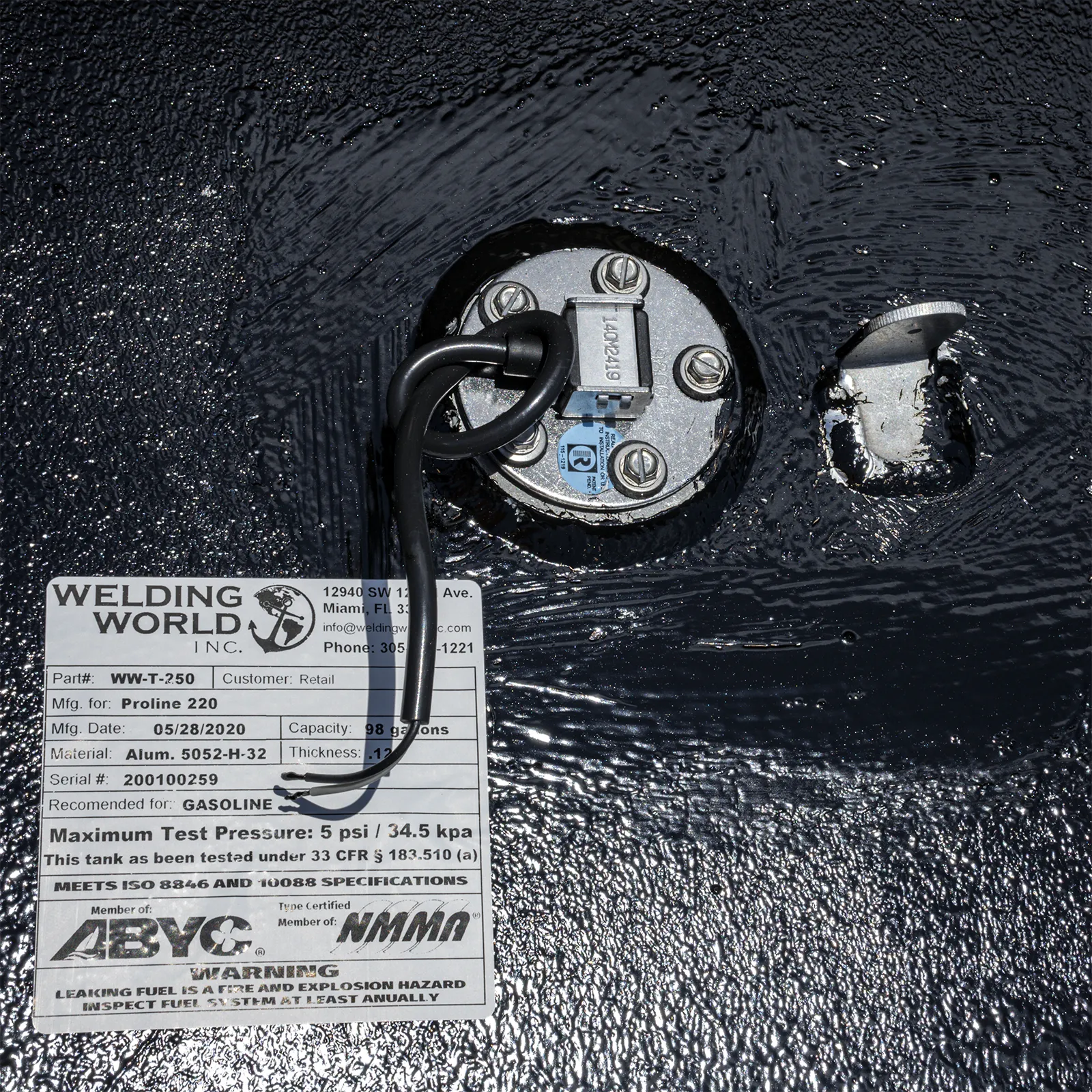

- KUSA® (ex-WEMA USA) reed switch and NBR float fuel level sender.
- 100% CAD reverse engineered to OEM specs. Exactly dimensioned to the original but superior in performance, hardware, durability, and craftsmanship. This is a replacement that's in many aspects more of an upgrade.
-
NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!
Fabrication lead time (before shipping): 2 workweeks.
Shipping: Only freight to the 48 contiguous states. Contact us for extra cost shipping options for HI and AK. International shipping from US-based carriers is welcome but contact us first to coordinate details.
